1/4" BBB Hot-Dipped Galvanized Windlass Chain, 1,300 lbs. WLL, 1 ft. Sample, ACCO Brand, Made In USA, Shipping Extra.

No reviews
$10.00
Each

Item #

38-434-SAMPLE

Size: 1/4"
Type: BBB
Finish: Hot-Dipped Galvanized
Length: 1 ft.
Working Load Limit: 1,300 lbs.
Made In USA: Yes
Current Stock:

Description

windlass.jpg Grade 30 "BBB" Anchor Chain
Genuine ACCO Brand

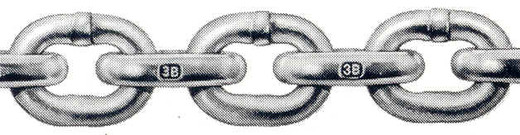

Chain is embossed "B3" every link 5/16 and larger

A low carbon steel, general purpose anchor (windlass) chain, with a short, compact link. The short link makes it more flexible and ideally suited as a windlass chain. Compatible with all major brands of windlasses. ACCO'S state-of-the-art hot dip galvanized finish is recommended for all marine applications.

Check carefully for fit or contact windlass manufacturer for correct chain size before purchase.

Not sold less than half drums or pails.



Very Important Link dimensions:

Chain
Size
Thickness Inside
Length
Inside
Width
Outside
Length
Outside
Width
Links/
Foot*
1/4 .274" 0.87" .43" 1.418" 0.978" 14
5/16 .328" 1.00" .50" 1.656" 1.156" 12
3/8 .392" 1.09" .62" 1.874" 1.404" 11
1/2 .509" 1.34" .75" 2.358" 1.768" 9

*links per foot measured from inside the links

*WLL Working Load Limit, 4:1 safety factor




Shackle Selection Chart

New at 1st Chain Supply - galvanized alloy steel shackles!  Now you don't have to order oversized end links to have shackles that match the strength of your chain. The pins on the alloy shackles below will fit inside the last link of your chain and still be the same strength or higher than your chain.

With 5/16

BBB Chain

With 3/8

BBB Chain

Use these Forged Steel Shackles

3/8"

7/16"

Use these Alloy Steel Shackles

3/8"

3/8" or 7/16"

A NOTE ABOUT TRUCK DELIVERIES: (These restrictions are for drums and half drums only - there are NO restrictions on pails)  We are not able to ship drums to a residential address. Please arrange to have your shipment sent to a commercial address where a fork lift is available. Alternatively. we can have the trucking company hold your drums at their terminal nearest you for your pickup. There is a $40.00 non-negotiable fee for arranging this service. If you do not pick up your shipment as arranged, there may be additional storage fees as well that would be your responsibility.



Note: This is not "G4" or "G40" High Test anchor chain.
